Sony E – native mount

This version uses a nativeSony E mountfor cameras with the Sony E bayonet.

Metric – focus scale in metres

TheMetricversion uses a focusing distance scale inmetres. Optics and mechanics are the same as the Imperial version; only the scale units differ.

Full frame coverage and 8K-ready imaging

Irix Cine 30mm T1.5 coversfull framewith a 43.3mm image circle. The optics are designed for high-resolution capture up toUltra HD 8K. Horizontal field of view on full frame is approximately 61.9°.

T1.5–T16 and 11 rounded iris blades

The stepless iris runs fromT1.5 to T16and uses11 rounded blades. T1.5 is useful in lower light and gives strong control over depth of field.

Modern optics and very low focus breathing

The optical design is refined for low distortion and aberrations.Very low focus breathinglimits framing changes during focus pulls, while internal focusing keeps lens length and the front element position unchanged.

Fully manual cine operation

Focus and iris are controlled mechanically on the lens. The focus ring rotates through180°the iris ring through75°and both use standard cineMod 0.8gearing.

86mm + Irix MMS – two filter options

The front filter thread is86 × 1.0mm. In additionMMS – Magnetic Mount Systemenables fast use of compatible Irix Edge MMS filters including UV, CPL, ND, Vari ND and Black Mist. MMS filters can also be stacked.

95mm front, support foot and cine standard

The external front diameter is95mmand gear positions are standardised across the Irix Cine family. The detachable 1/4” lens support foot can be mounted on the top or bottom to support the lens in a rig.

Weather sealing and UV markings

This version uses5 sealing pointsaround key areas. Laser-engraved markings filled with UV-reactive paint remain easier to read in low-light environments.

Consistency across the Irix Cine family

Neutrino coating and a matched image character help keep colour reproduction consistent when switching focal lengths. Similar weights and gear locations also make lens changes easier on rigs and gimbals.

Dimensions and weight of this version

TheSony Eversion measures approximately133 × 97 mmand weighs about1191 gwithout accessories.

Irix Cine 30mm T1.5 in use

Key specifications

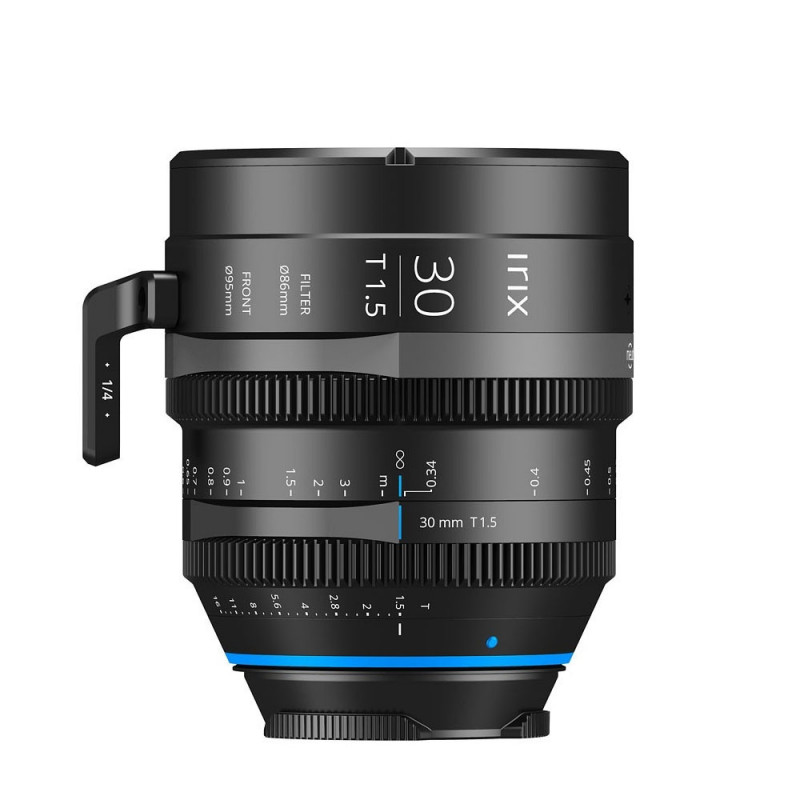

• model:Irix Cine 30mm T1.5
• mount:Sony E
• focus scale:Metric – metres
• focal length:30 mm
• coverage:Full Frame
• image circle:43.3 mm
• aperture:T1.5–T16
• iris blades:11
• minimum focus distance:0.34 m / 13.39"
• focusing:manual
• focus ring rotation:180°
• iris ring rotation:75°
• gearing:Mod 0.8
• focus / iris teeth:119 / 110
• field of view:61.9° Full Frame / 45.1° S35 / 42.9° APS-C / 32.2° MFT
• filter thread:86 × 1.0 mm
• magnetic system:Irix MMS / Irix Edge MMS
• front diameter:95 mm
• sealing points:5
• dimensions:133 × 97 mm
• weight:1191 g
• markings:laser engraved, UV reactive

Kit includes

• Irix Cine 30mm T1.5 for Sony E Metric lens
• front lens cap
• rear lens cap
• 1/4" lens support foot
• original packaging
